RJD10 POSITIVE FEED DRILL

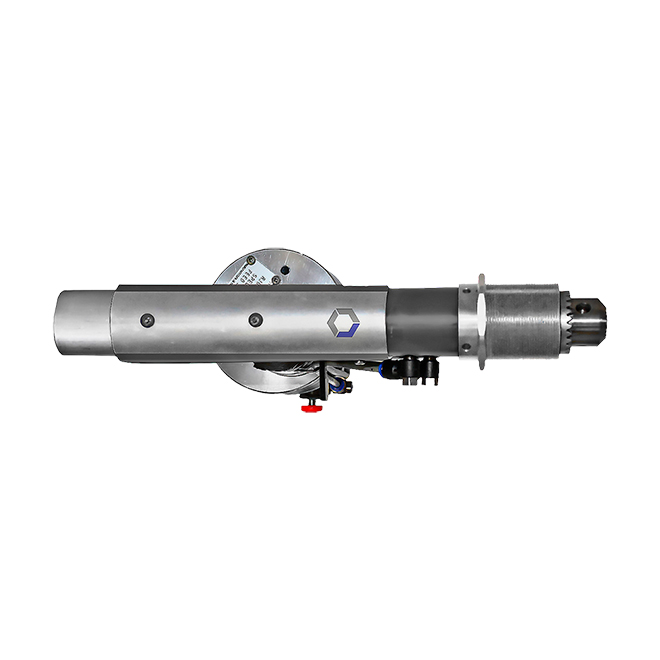

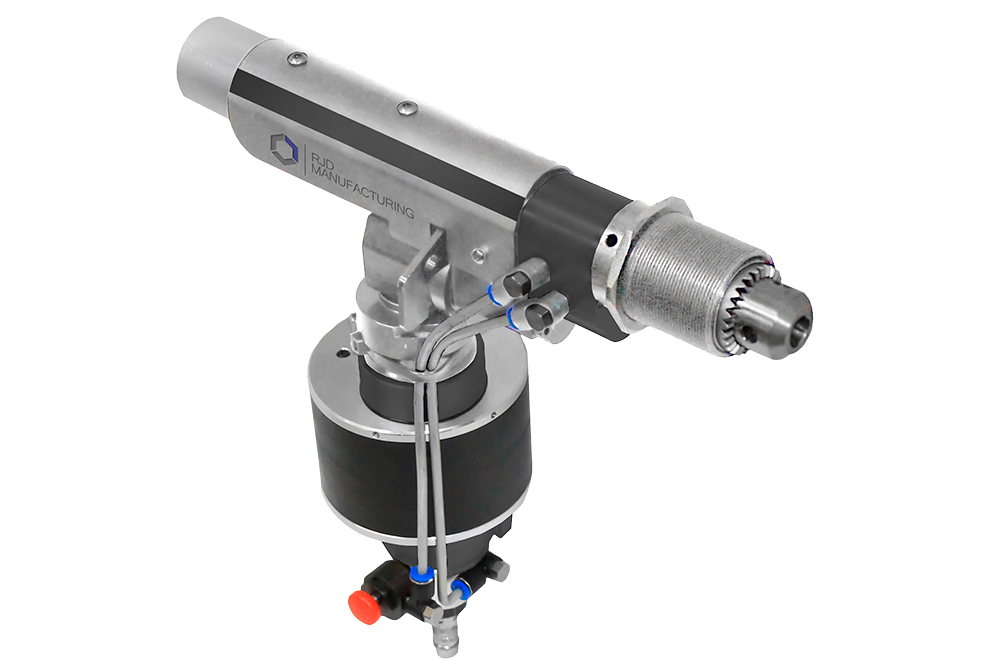

RJD10 1 HP Positive Feed Drill

Introducing the RJD10 Positive Feed Drill our most reliable positive feed drill – yet. Manufactured and assembled in the UK, it offers complete flexibility in configuration.

Developed to suit the exacting requirements of modern aircraft build.

The RJD10 comes with many different options, as standard. The flexibility of the design and manufacturing process means that you receive the drill built to suit your individual specifications.

Features

  • Fully automatic
  • Leadscrew-controlled for constant feed rate
  • Clean, high quality holes
  • Portable
  • Low Noise levels
Manufactured in the UK

Features

  • Fully automatic
  • Leadscrew-controlled for constant feed rate
  • Clean, high quality holes
  • Portable

Eliminates

  • Breakthrough acceleration
  • Surging between laminations
  • Work hardening
RJD Manufacturing RJD10 | Positive Feed Drill
SPEC
Part number RJD10
Description Positive Feed Drill
Speeds 130rpm |  250rpm

430rpm | 900 rpm

Feed Rates 0.0007 in | 0.0013in | 0.0027

in 0.0041 in | 0.0055 in

Drilling Capacity Titanium 12.7mm

Aluminum >13mm

Optimum Air Pressure 6.3bar | 90psi
Optimum Air Supply Hose half inch
Air Inlet Quarter Inch BSPT

Individual Options as standard

  • Stroke length built to specification up to 100mm
  • Chuck or Collet output
  • Collet size range from 1.6mm to 9.5mm
  • Angled or Inline Drilling Head
  • Speed and Feed Rate options
Torque Tube options

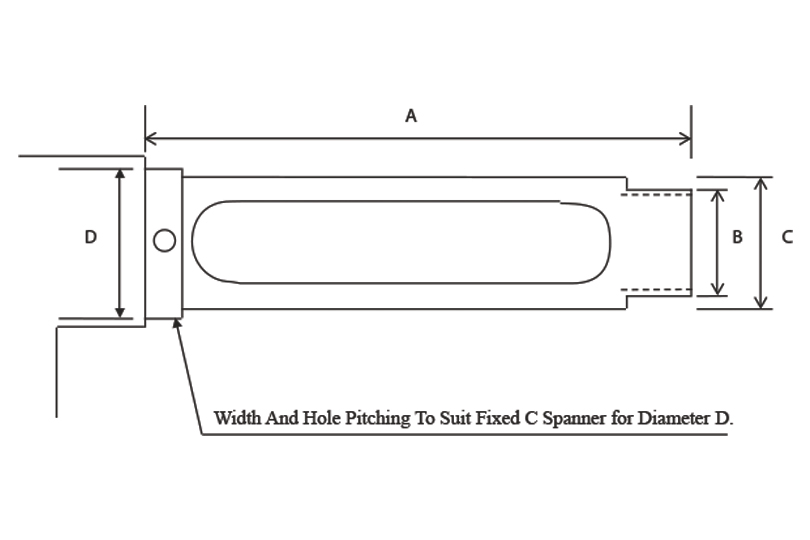

Torque Tube Options
Part No A B – taperlok C D
RJD1580-700 108 To suit 21 000 28 n/a
RJD1659-700 162 To suit 21 000 28 n/a
RJD1660-700 167 To suit 22 000 34 n/a
RJD1661-700 80 To suit 21 000 28 n/a
RJD1670-700 132 To suit 21 000 34 34
RJD1671-700 132 To suit 22 000 34 34
RJD1682-700 115 To suit 21 000 28 34
RJD1694-700 81 To suit 21 000 28 34
RJD1731-700 98 To suit 22 000 34 34
RJD1732-700 57 To suit 21 000 28 34
RJD1751-700 65 To suit 21 000 28 34
RJD1756-700 180 To suit 21 000 28 34
RJD1786-700 95 To suit 21 000 28 34
